Pave-Mate Truck Mounts
Diamond Bilt's truck mounted units are perfect for the contractor with a service truck. Designed to utilize the truck's engine coolant to heat your material, these units are both efficient and effective. With a variety of different sizes ranging from 40-200 gallons and multiple mounting styles, these units can work with even the most crowded vehicles. If you're worried about room in your truck, ask us about our underbody mount.
Description
- 40/130/200 Gallon Models Available
- 7 Gallon Flush Tank/7 Gallon Recovery Tank
- 5' Lightweight Spray Wand with Stay Cool Handle and No Drip Tip
- Recirculation Circuits for All Plumbing, Hoses, and Spray Wand
- 10" Diameter Fill Dome
- 4 Pass Heating Coil Utilizing Truck Coolant
- Pump Bonnet Routes Engine Exhaust to Pump to Aid in Start Up and Performance
- Black Paint
Popular Options
- Out of Service Tank Heater/Night Heater (ZETH)
- 50' Spray Wand Hose (Z50H)
- Non Standard Paint Colors (ZSPL PT)
PM60 & PM100
The Pave-Mate models PM060 and PM100 are the perfect companions for the contractor working on small jobs, such as filling potholes or minor trenching. These units come standard as a skid with built-in forklift pockets for ease of use and mobility. Put them in the back of your pickup and you're set to go! Also available as a trailer.
Description
- 60 Gallon Tank Capacity/100 Gallon Tank Capacity
- 785 lb/865 lb Unloaded
- 7 Gallon Flush Tank/7 Gallon Recovery Tank (This ends up being a little confusing because the first two bullet points are distinguishing between the two sizes of units and this third bullet point is simply how we describe those tanks. If you have a suggestion of a different way to distinguish between unit sizes other than a slash and it wouldn't look clunky, I am all ears)
- 5' Lightweight Spray Wand with Stay Cool Handle and No Drip Tip
- Recirculation Circuits for All Plumbing, Hoses, and Spray Wand
- 10" Diameter Fill Dome
- 173,000 BTU Propane Burner with 12 Volt Igniter
- Pump Bonnet Routes Engine Exhaust to Pump to Aid in Start Up and Performance
- Built In Forklift Pockets for Easy Transfer Between Trucks
- Black Paint
Popular Options
- Out of Service Tank Heater/Night Heater (ZETH)
- 50' Spray Wand Hose (Z50H)
- Hand Torch (ZPJT)
- Non Standard Paint Colors (ZSPL PT)
PM230
The Pave-Mate PM230 is Diamond Bilt's flagship tack pot. With standard electric start, recirculation, and our pump heat bonnet, it is no wonder that it is our best-selling unit. Its 230 gallon capacity makes it is easy to maneuver and big enough to get the job done. 400 & 800 gallon units also available on request.
Description
- 230 Gallon Tank Capacity
- 3,500 lb GVWR
- 10 Gallon Flush Tank/13 Gallon Recovery Tank
- 7 Gallon Flush Tank
- 5' Lightweight Spray Wand with Stay Cool Handle and No Drip Tip
- 10" Diameter Fill Dome
- 173,000 BTU Propane Burner with 12 Volt Igniter
Features
- Precise control of spray volume and pressure from a positive displacement gear pump and adjustable pressure relief.
- Even mixing and heating of oil from a recirculation system that minimizes asphaltic buildup.
- Selective lock-in/lock-out pattern adjustment and leak-free shutoff provided by heat-treated rotary distributor bar internal spray valve assemblies (only with distributor bar option).
- Non-pressurized tank eliminates danger of explosion or sudden pressure release during filling.
- Fast cleanup, using efficient solvent flushing system, that cleans the pump, plumbing, hose, spray wand and distributor bar.
- 12-volt DC LPG ignitor.
- 160 CC electric start engine is standard.
- 5′ light weight spray wand with end shutoff valve and recirculation feature with standard 25′ hose (50′ hose optional).
- Pump bonnet covering asphalt pump heated by both LPG and gas engine exhaust.

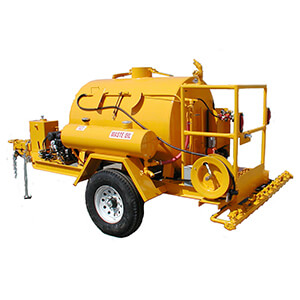

PM400
For the contractor who needs a little bit more capacity in their tank, the Pave-Mate PM400 is the perfect solution. Whether a trailer or a skid, this unit delivers top quality performance. Be sure to ask about our spray bars!
Description
- 400 Gallon Tank Capacity
- 6,000 lb GVWR*
- 10 Gallon Flush Tank/13 Gallon Recovery Tank*
- 7 Gallon Flush Tank**
- 5' Lightweight Spray Wand with Stay Cool Handle and No Drip Tip
- Recirculation Circuits for All Plumbing, Hoses, and Spray Wand
- 10" Diameter Fill Dome
- 173,000 BTU Propane Burner with 12 Volt Igniter
- Electric Brakes with Breakaway Switch*
- Pump Bonnet Routes Engine and LPG Exhaust to Pump to Aid in Start Up and Performance
- Lunette Eye Hitch*
- Black Paint
*Refers to trailers units only.
**Refers to skid units only.
Popular Options
- Out of Service Tank Heater/Night Heater (ZETH)
- Hand Torch (ZPJT)
- Spring Rewind Hose Reel (ZSRHT/ZSRHS)
- Operator's Platform (ZOPHR)
- 6' Spray Bar (TD)
- 50' Spray Wand Hose (Z50H)
- Hydraulic Drive (ZHYD/ZHYDR)
- Non Standard Paint Colors (ZSPL PT)

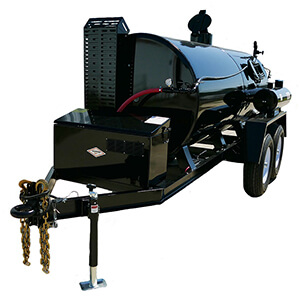

PM800
If you need more capacity for your tack pot, the Pave-Mate PM800 is the perfect solution. With a GVWR of 9,999 lb, no special driver's license is needed to tow this unit and the 800 gallon capacity means fewer trips to refill. The Pave-Mate PM800 will hold enough oil for most large jobs. If you're worried about leaving oil in your machine overnight, ask us about our night heaters!
Features
- 800 Gallon Tank Capacity
- 9,999 lb GVWR (Class C License is sufficient for towing)*
- 10 Gallon Flush Tank/13 Gallon Recovery Tank*
- 7 Gallon Flush Tank**
- 5' Lightweight Spray Wand with Stay Cool Handle and No Drip Tip
- Recirculation Circuits for All Plumbing, Hoses, and Spray Wand
- 10" Diameter Fill Dome
- 173,000 BTU Propane Burner with 12 Volt Igniter
- Electric Brakes with Breakaway Switch*
- Pump Bonnet Routes Engine and LPG Exhaust to Pump to Aid in Start Up and Performance
- Lunette Eye Hitch*
- Black Paint
*Refers to trailers units only.
**Refers to skid units only.
Popular Options
- Out of Service Tank Heater/Night Heater (ZETH)
- Hand Torch (ZPJT)
- Spring Rewind Hose Reel (ZSRHT/ZSRHS)
- Operator's Platform (ZOPHR)
- 6' Spray Bar (TD)
- 50' Spray Wand Hose (Z50H)
- Hydraulic Drive (ZHYD/ZHYDR)
- Non Standard Paint Colors (ZSPL PT)
