CORE BORE CB733 – ELECTRIC
Features & Benefits
- 20 amp, 120 / 230 volt
- Up to 16" bit capacity
- Built-in thermal overload protection
- Water connection for wet drilling
- Includes on/off switch, amp meter, no control panel needed
- 1.250-7" threaded spindle
CORE BORE CB744 – ELECTRIC
Features & Benefits
- 25 amp, 115 volt
- Standard 16" bit capacity, 18" maximum
- Built-in LED amp meter, no control panel needed
- Water hose connection
- 1.250-7" threaded spindle
- Slip clutch
- Bubble level
- Carrying handle
- Extra long cord
- Includes open end wrench
MILWAUKEE 4004 / 4005 / 4096 / 4097-20 – ELECTRIC
Features & Benefits
- Model 4004 – 4.8 max HP – 16" max bit size
- Model 4005 – 4.8 max HP – 7" max bit size
- Model 4096 – 4.8 max HP – 10" max bit size
- Model 4097-20 – 2.5 max HP – 12" max bit size
- 20 amp, 115 volt (4097 = 120V / 15A
- Available with or without on/off switch
- Built-in water swivel and water control valve
- 1.250-7" threaded spindle
- Slip clutch
- Includes open end wrench
- Milwaukee 5-Year Limited Warranty
WEKA DK22 / DK32 / DK38 / DK42 / DK52 / SR75S – ELECTRIC
Features & Benefits
- Heavy-duty
- Water connection
- 1.250-7" threaded spindle
- 1" – 26" bit capacity
CORE BORE 4250021 4-SPD - HYDRAULIC
Features & Benefits
- 160/320/480/960 RPM at 12 GPM
- Min RPM 110 at 8 GPM, Max RPM 1600 at 20 GPM
- 12" bit capacity without extension, 24" drilling capacity with extension
CORE BORE CB515 HAND-HELD – ELECTRIC
Features & Benefits
- 1800 Watt, 115 volt electric motor
- 2-speed gear box (1400 rpm and 2300 rpm) with slip clutch
- Side handle for stable coring
- 1.250-7 threaded spindle with 5/8"-11 adapter
- Water hose connection for wet drilling
- PRCD/GFCI Class I cord
- Works with M-4 stand and hand held motor mounts
- Top bubble level for accuracy
- Weight: 10.5 lbs.
- Includes: Plastic molded carrying case, side handle, 5/8"-11 adapter and wrench

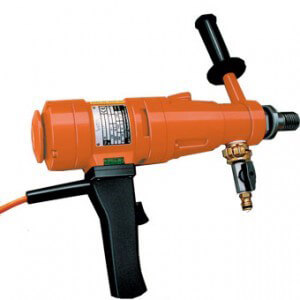

WEKA DK12 / DK13 / DK16 HAND-HELD – ELECTRIC
Features & Benefits
- Thermal overload protection switch
- Side handle for stability
- Water connection for wet coring only
- 5/8"-11 or 1.250"-7 spindle
- Three speed for bits up to 3" (6" mounted)
- Includes carrying case and wrench
- Two leveling bubbles for accurate coring
- Can be used on M-3 & M-4
- Includes: Plastic molded carrying case, side handle, 1/2" BSP male to 5/8-11 male adapter, wrench
HUSQVARNA DM 220 HAND-HELD - ELECTRIC
Handheld electric core drill for both dry and wet drilling. DM 220 has a level guiding system with a LED indicator, making it a perfect choice when looking for a drill motor with precision and efficiency. The ergonomically designed handle with D-handle gives you good control while drilling. Handheld core drilling up to 4 in. or drilling with stand up to 6 in. Suitable for light applications such as ventilation, plumbing pipes, electrical sockets and cables. An excellent choice for professionals as well as less experienced users.
Features & Benefits
- 2.3 HP, 115V / 230V, 15A / 8A, 1-PH
- 4" max bit capacity hand-held, 6" max bit capacity mounted on stand
