Drill Stands
Core Drills

Features & Benefits

• 2-1/2" square column (mast) with black oxidized finish
• 6" wheels for easy mobility
• Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)
• Vacuum pump for quick mounting to flat surface without drilling an anchor hole (included with combination rig)
• 4 leveling screws on the base
• Up to 14" bit capacity with one spacer block
• Slide handle allows for drilling in tight areas
• Combination base is a quick change over from vacuum to anchor base
• Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2 x 4 or other material)

Features & Benefits

• Heavy duty rig for larger jobs and the professional driller
• Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)
• 2-7/8" precision made, chrome plated square column (mast)
• Vacuum pump for quick mounting to flat surface without drilling an anchor hole (Included with combination rig)
• Combo base is a quick change over from vacuum to anchor base
• 6" wheels for easy mobility
• 4 Leveling Screws on base
• Larger mast to withstand high torque and large diameter bits
• The 4-spoke handle allows the operator to easily apply feed pressure
• Optional roller carriage allows for more precise drilling
• Autofeed option available

Features & Benefits

• Single switch outlet control panel with amp meter (except for CB700 models with LED amp meter)
• 1-1/2" square column (mast) with black oxidized finish
• Swivel base and mast can turn 360o for easy drilling on stairs
• 4 leveling screws on the base
• Wheel kit on anchor models
• Light weight and economical
• Slide handle permits drilling in tight areas
• Compact Size for hard-to-reach drilling areas
• Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2x4 or other material)
• Weka models allow the motor to be unmounted and used hand-held

Features & Benefits

• Great for the general contractor (basic drilling) or plumber (hand-held drilling), electrical or mechanical contractor
• Reversible slide handle (for use on left or right side)
• High strength, hard anodized 1-5/8" x 2" aluminum column
• Top carrying handle
• Quick release motor mount
• Carriage lock
• Leveling bolts on all model bases
• Hand-held option
• 4 Leveling screws on base
• Light weight and portable
• Combo bases have angle braces for drilling up to 45o
• 4 adjustable slide bearings provide superior carriage rigidity
• Quick change over from vacuum to anchor base

Features & Benefits

• Quick release motor mount
• 4-spoke sliding handle (can be used on right or left)
• Positive carriage lock
• 2-1/2" x 3" extruded aluminum light weight column (mast) that is hard anodized to prevent wear
• Quick release vacuum button
• Top carrying handle (ceiling jack available)
• Large bit capacity in a smaller rig system
• Allows for mounting hydraulic motors
• Angle stand to drill up to 45°
• Double column support for increased stability
• Easily adjustable slide bearings

Features & Benefits

• Quick disconnect motor mount that makes it easy to remove the motor
• 4-spoke handle (can be used on right or left) on combo rig
• Positive carriage lock and friction lock
• Extruded aluminum light weight column (mast) that has a reinforced track with steel roller guide and rollers
• Dual control panel/amp meter included with combination rigs
• Quick release vacuum button
• Convenient carrying handle
• Level bubble on column
• 2 gear ratios for easy carriage feed
• Angle stand to drill up to 45°

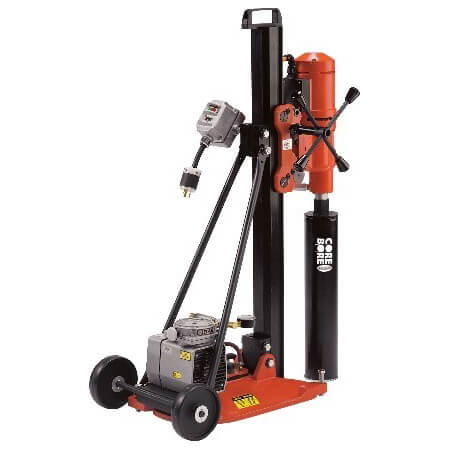

Features & Benefits

• 18" bit capacity with standard pillow block.
• Add-on 4"x6" steel tube spacers available for drilling up to 72" diameter holes.
• Heavy duty 15" x 12" roller carriage
• Massive 72" tall, 4" x 6" rectangular mast
• Sturdy cast aluminum base (steel base optional)
• 4-spoke handles
• Wheel kit and leveling bolts
• 6" rubber wheels on stand base
• The large size and heavy duty construction makes the M-6 a safer way to drill with large diameter core bits
• Sold as a stand only so you can create your own system for your applications
• 2:1 gear reduction makes lifting larger bits easy
